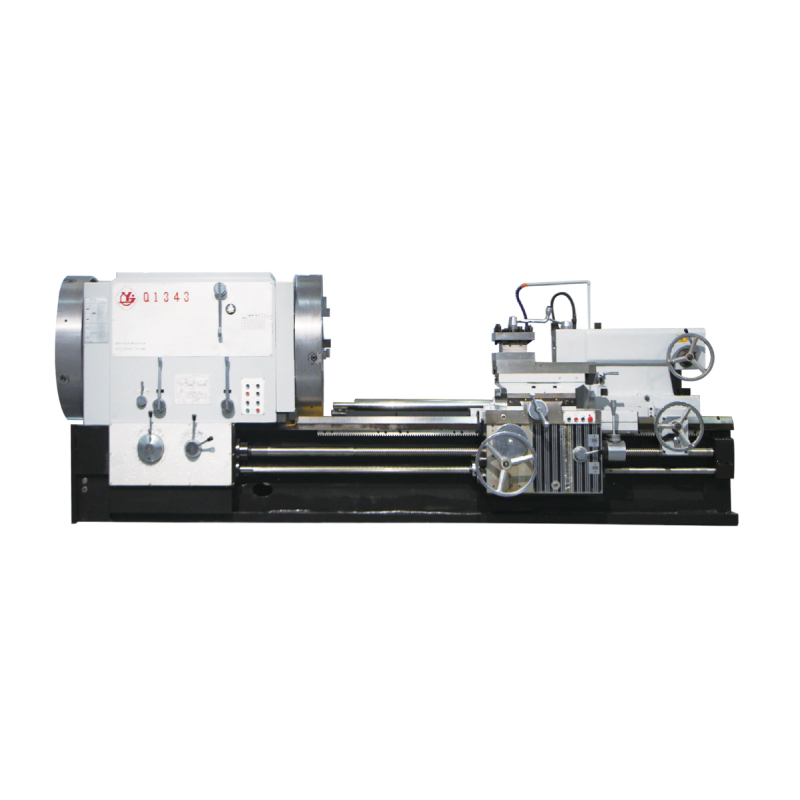

Q13 Series Pipe Threading
PRODUCT DESCRIPTION
Q13 series pipe threading lathe mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore, end face of shafts and disks, this series is equipped with taper guide bar device which enables this series to process taper thread, this series is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, for processing and repairing drilling pipe, drilling rod, thread coupling and so on.
FEATURES
Big spindle bore and double chuck allows clamp and process big diameter pipes.
Integral machine bed adopts high strength iron to realize high rigidity and precision.
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
Equipped with taper guide bar device this enables the machine to process taper threads.
Related products
-
METAL WORKING
CW6263 CW6280(A) CW62100(A) CW62120(A) HORIZONTAL LATHE
-
METAL WORKING
CWA62100 CWA62125 CWA62140 CWA62160
-
METAL WORKING

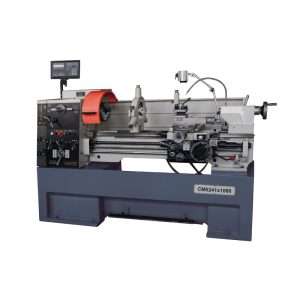

CM6241 CM6241V
-
